The Comprehensive Guide to Thrust Roller Bearings: Unlocking Efficiency and Precision in Rotating Machinery

Thrust roller bearings are indispensable components in various industrial applications, delivering exceptional performance in handling axial loads while minimizing friction and wear. This comprehensive guide delves into the intricacies of thrust roller bearings, exploring their types, benefits, selection criteria, and practical applications. By understanding the fundamentals of these critical bearing systems, engineers and technicians can optimize their designs for enhanced efficiency, durability, and operational longevity.

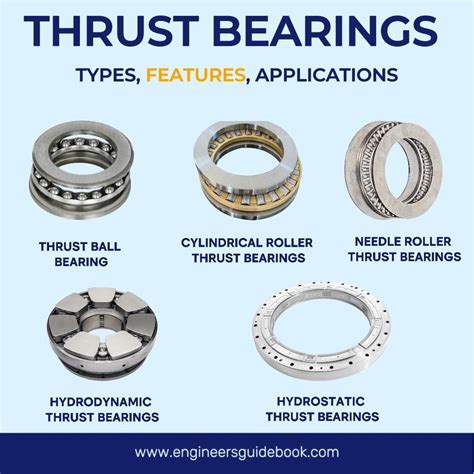

Understanding the Types of Thrust Roller Bearings

Thrust roller bearings come in various configurations, each tailored for specific load ratings, speed requirements, and operating conditions. The two primary types of thrust roller bearings include:

• Cylindrical roller thrust bearings: These bearings utilize cylindrical rollers that distribute axial loads uniformly over a large contact area, providing high load-carrying capacity. They are ideal for applications involving moderate speeds and heavy axial loads.
• Tapered roller thrust bearings: Incorporating tapered rollers, these bearings offer a combination of high axial load capacity and the ability to accommodate misalignment, ensuring reliable performance in demanding operating environments.

The Benefits of Thrust Roller Bearings: Enhancing Performance and Reliability

Integrating thrust roller bearings into rotating machinery offers a myriad of benefits, contributing to improved efficiency, extended service life, and enhanced overall system performance:

• Reduced friction and wear: The rolling motion of rollers significantly reduces friction compared to sliding bearings, minimizing heat generation, power loss, and wear and tear on bearing components.
• High load capacity: Thrust roller bearings are engineered to withstand substantial axial loads, ensuring reliable operation in applications where significant thrust forces are encountered.
• Durability and long service life: Precision manufacturing and high-quality materials ensure exceptional durability, reducing maintenance requirements and extending the operational lifespan of machinery.
• Accommodating misalignment: Tapered roller thrust bearings can tolerate minor misalignments, minimizing the impact of shaft deflections or housing inaccuracies on bearing performance.
• Versatility: Thrust roller bearings find applications in a wide range of industries, including automotive, aerospace, power generation, and heavy machinery, demonstrating their versatility and adaptability.

Selecting the Right Thrust Roller Bearing: Matching Performance to Requirements

To harness the full potential of thrust roller bearings, selecting the appropriate type and size is crucial. Considerations include:

• Load rating: Determine the maximum axial load the bearing will encounter to ensure adequate load-carrying capacity.
• Speed: Consider the operating speed to select a bearing with suitable speed ratings and lubrication requirements.
• Operating conditions: Evaluate the operating environment, including temperature, contamination, and potential misalignment, to choose a bearing with appropriate materials and design features.
• Size and space constraints: Ensure the selected bearing fits within the available space and meets the overall size requirements of the application.

Applications of Thrust Roller Bearings: Enhancing Performance Across Industries

Thrust roller bearings play vital roles in various industrial applications, including:

• Wind turbines: Handling axial loads generated by wind forces, thrust roller bearings contribute to efficient and reliable operation of wind turbines.
• Automotive: In transmissions and differentials, thrust roller bearings enable smooth and efficient power transmission while withstanding high axial loads.
• ** Aerospace: With their ability to accommodate misalignment and withstand extreme loads, thrust roller bearings** find applications in aircraft engines and other critical aerospace components.
• Industrial machinery: Heavy-duty thrust roller bearings support substantial axial loads in industrial machinery, such as presses, cranes, and rolling mills.

Step-by-Step Guide to Installing Thrust Roller Bearings: Ensuring Optimal Performance

1. Prepare the shaft and housing: Clean and inspect the shaft and housing surfaces to ensure they are free of burrs, nicks, or other imperfections that could damage the bearing.

2. Apply lubricant: Lubricate the shaft and housing surfaces according to the bearing manufacturer's recommendations.



3. Position the bearing: Carefully align and position the bearing on the shaft, ensuring it is oriented correctly and seated properly.

4. Secure the bearing: Tighten the locking nut or other fastening mechanism to the specified torque, using a torque wrench to ensure proper preload.

5. Check alignment: Verify the alignment of the bearing using a dial indicator or other precision measuring tool.

6. Install the housing: Securely mount the housing to the machine frame, ensuring proper alignment and support.

Tips and Tricks for Optimizing Thrust Roller Bearing Performance and Longevity

• Proper lubrication: Follow the manufacturer's guidelines for lubrication type, quantity, and frequency to maintain optimal bearing performance and extend service life.
• Contamination control: Prevent contaminants from entering the bearing by using seals or other protective measures to minimize wear and damage.
• Regular inspection and maintenance: Periodically inspect bearings for signs of wear, damage, or misalignment, and perform necessary maintenance or replacement as needed.
• Avoid overtightening: Exceeding the recommended preload torque can damage the bearing and shorten its lifespan.
• Handle with care: Use proper lifting and installation techniques to avoid damaging the bearing during handling and installation.

Common Mistakes to Avoid When Using Thrust Roller Bearings

• Insufficient load capacity: Selecting a bearing with an inadequate load rating can lead to premature failure.
• Improper lubrication: Using the wrong lubricant or neglecting lubrication can result in increased friction, wear, and reduced bearing life.
• Misalignment: Incorrect alignment of the bearing can cause excessive loads and premature failure.
• Overheating: Continuous operation at high temperatures can damage the bearing and reduce its performance.
• Ignoring wear and damage: Ignoring signs of wear or damage and failing to perform timely maintenance can lead to catastrophic failure.

Call to Action: Leverage the Power of Thrust Roller Bearings for Enhanced Performance

Thrust roller bearings are indispensable components in rotating machinery, delivering exceptional performance in handling axial loads and enhancing overall system efficiency. By understanding the different types, benefits, selection criteria, and practical applications of thrust roller bearings, engineers and technicians can optimize their designs for improved performance, durability, and reliability. Proper installation and maintenance practices, along with attention to potential pitfalls, will ensure the longevity and effectiveness of thrust roller bearings in a wide range of industrial applications. Embrace the power of thrust roller bearings to unlock the full potential of your rotating machinery.

Table 1: Comparison of Thrust Roller Bearing Types

Table 2: Benefits of Thrust Roller Bearings

Table 3: Applications of Thrust Roller Bearings
