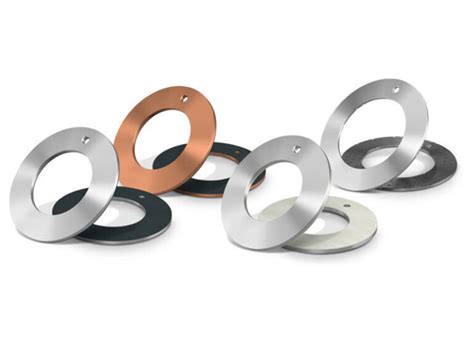

Thrust Washers: A Comprehensive Guide to Their Importance, Applications, and Installation

Thrust washers are critical components in various mechanical applications, playing a crucial role in reducing friction, preventing wear, and maintaining alignment. This article delves into the realm of thrust washers, exploring their significance, types, materials, and installation techniques.

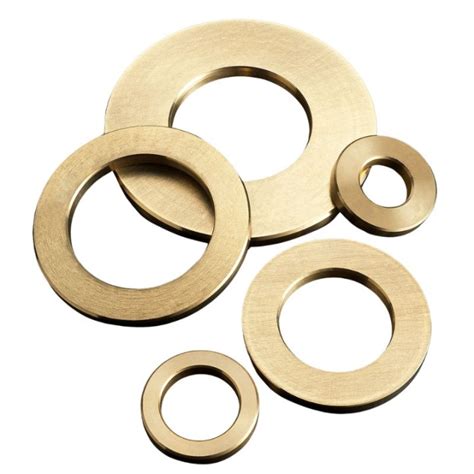

Importance of Thrust Washers

Thrust washers are essential for:

• Reducing friction: They act as a barrier between rotating and stationary surfaces, minimizing frictional forces that can lead to energy loss and component wear.
• Preventing wear: By distributing load over a larger surface area, thrust washers protect mating surfaces from excessive wear, extending their lifespan.
• Maintaining alignment: They help maintain proper alignment between rotating and stationary parts, ensuring smooth operation and preventing misalignment issues.

Thrust washers are widely used in industries such as:

• Automotive
• Aerospace
• Heavy machinery
• Medical equipment
• Marine engineering

Types of Thrust Washers

Thrust washers come in various types, each designed for specific applications:

• Flat thrust washers: These are simple, flat washers that provide basic load-bearing capacity.
• Spherical thrust washers: They have a spherical seating surface that allows for misalignment and accommodates angular motion.
• Tapered thrust washers: These washers have a tapered bore and outside diameter, providing a wedging effect that increases load capacity.
• Ball thrust washers: They consist of multiple balls held in a retainer, providing low friction and high load capacity.
• Roller thrust washers: These washers have cylindrical rollers instead of balls, offering superior load capacity and reduced rolling resistance.

Materials for Thrust Washers

The choice of material for thrust washers depends on the application's requirements and operating conditions. Common materials include:

• Steel: Provides high strength and durability but is prone to corrosion.
• Stainless steel: Offers corrosion resistance, making it suitable for wet or corrosive environments.
• Bronze: Has good bearing properties, low friction, and is compatible with various lubricants.
• PTFE (Teflon): Provides excellent friction reduction, chemical resistance, and is ideal for high-speed applications.
• Ceramics: Offer high strength, wear resistance, and are resistant to corrosion and oxidation.

Installing Thrust Washers

Proper installation of thrust washers is crucial for optimal performance:

1. Clean the mating surfaces: Remove any debris or contaminants from the surfaces where the thrust washer will be installed.
2. Lubricate the surfaces: Apply a suitable lubricant to the mating surfaces to reduce friction and prevent wear.
3. Position the thrust washer: Carefully place the thrust washer on the intended surface, ensuring proper alignment and orientation.
4. Secure the thrust washer: Use appropriate methods like bolts, adhesives, or retaining rings to secure the thrust washer in place.
5. Tighten to specifications: Follow the manufacturer's instructions for tightening the fastener to ensure proper tension and load capacity.

Common Mistakes to Avoid

When working with thrust washers, avoid common mistakes that can compromise their effectiveness:

• Using the wrong type or size: Choosing a thrust washer that is not designed for the specific application can lead to premature failure.
• Improper lubrication: Insufficient or incorrect lubrication can cause excessive friction and wear, reducing the thrust washer's lifespan.
• Installing thrust washers with contaminants: Debris or foreign particles can interfere with the smooth operation of the thrust washer.
• Not securing thrust washers properly: Loose or improperly secured thrust washers can slip or move, causing misalignment and damage.
• Overtightening fasteners: Applying excessive torque can damage the thrust washer or mating components.

Benefits of Using Thrust Washers

Incorporating thrust washers into mechanical designs offers numerous benefits:

• Reduced maintenance: Thrust washers prolong the lifespan of mating components, minimizing maintenance costs and downtime.
• Improved efficiency: By reducing friction, thrust washers enhance energy efficiency and optimize performance.
• Increased load capacity: Specialized thrust washers can handle high loads, extending the range of applications.
• Eliminated wear and seizure: Proper use of thrust washers prevents wear and eliminates the risk of seizure, ensuring smooth operation.
• Enhanced precision: Thrust washers contribute to maintaining alignment, improving precision and accuracy in mechanical systems.

Conclusion

Thrust washers are essential components that play a crucial role in the performance and longevity of mechanical systems. Understanding their importance, types, materials, and installation techniques is vital for maximizing their effectiveness. By choosing the right thrust washer for the application and following proper installation guidelines, you can ensure optimal performance, reduced maintenance, and enhanced efficiency in your mechanical designs.
